Easy-Stow Information For Dealers

Access Unlimited's Easy Stow Generation II

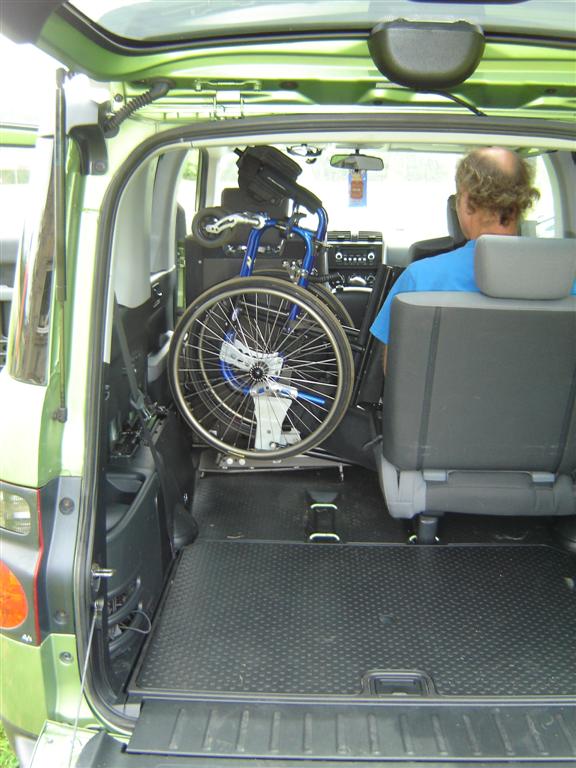

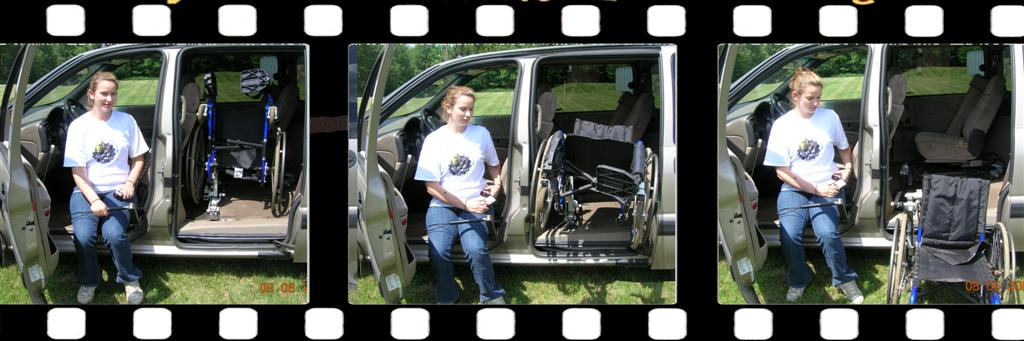

The Easy-Stow Generation II is a simple and unique way to stow your manual wheelchair in a wide variety of vehicles. You simply deploy the lift and roll your wheelchair back, and the innovative and easy-to-use "duckbill" receiver on the lift clips to your wheelchair's docking device. You then press the "up" button, and your wheelchair is simultaneously raised into the vehicle and rotated to an upright position. The unit can lift wheelchairs of up to 60 pounds. Your chair is securely latched in place while you are traveling. The docking device is mounted close to the right side axle of the wheelchair and adds approximately 1 pound to the weight of the wheelchair.

The attachment device for the wheelchair is a blade mounted on the frame of the wheelchair which slides into a “duckbill” receiver that is attached to the lift. When you want to attach your wheelchair, you simply roll the wheelchair rearward towards the lift and the "duckbill" funnels your wheelchair into the correct position, then latches it securely in place automatically. To release, you press an easily-accessible lever, give your wheelchair a little push forward, and you are ready to roll!

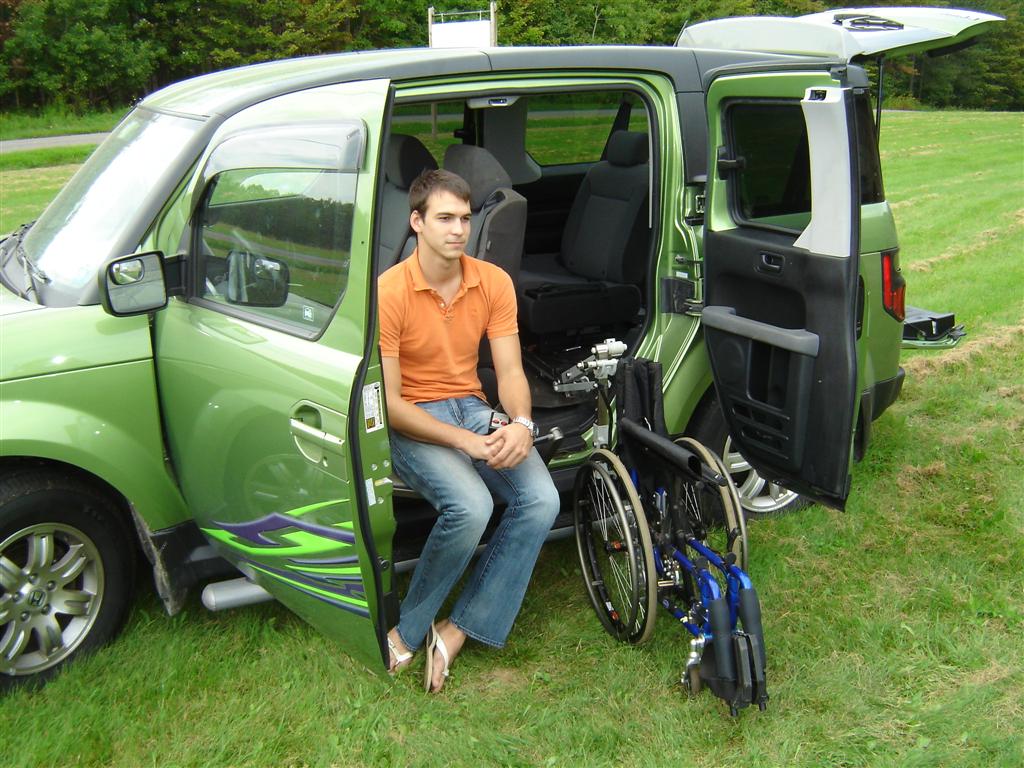

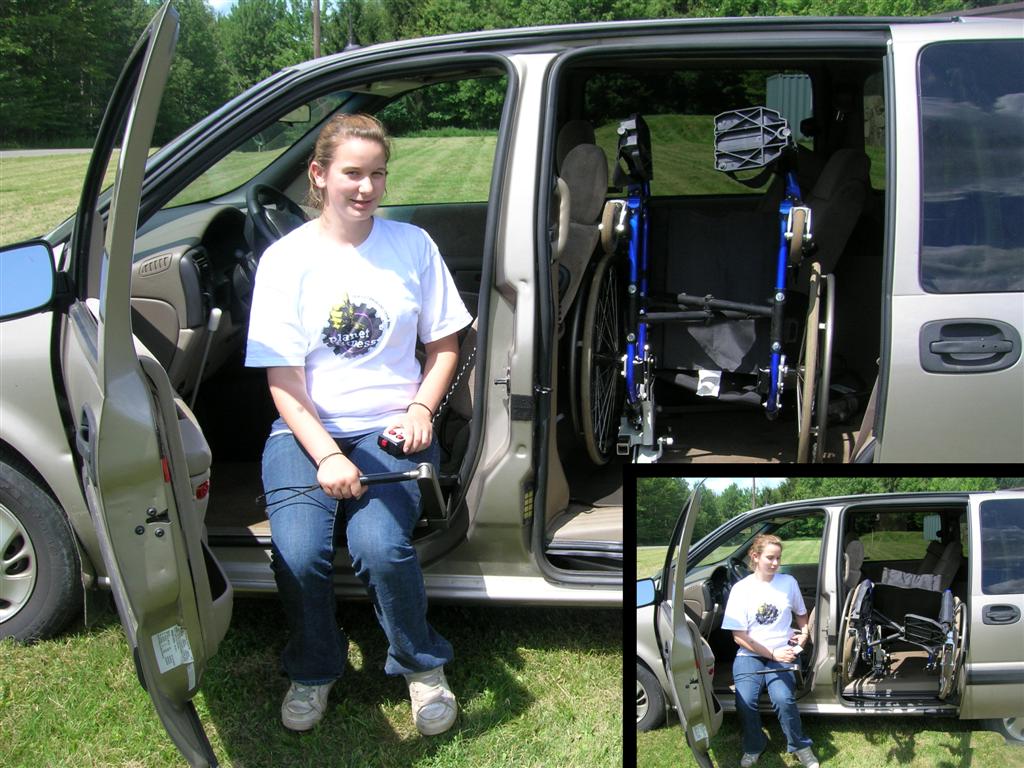

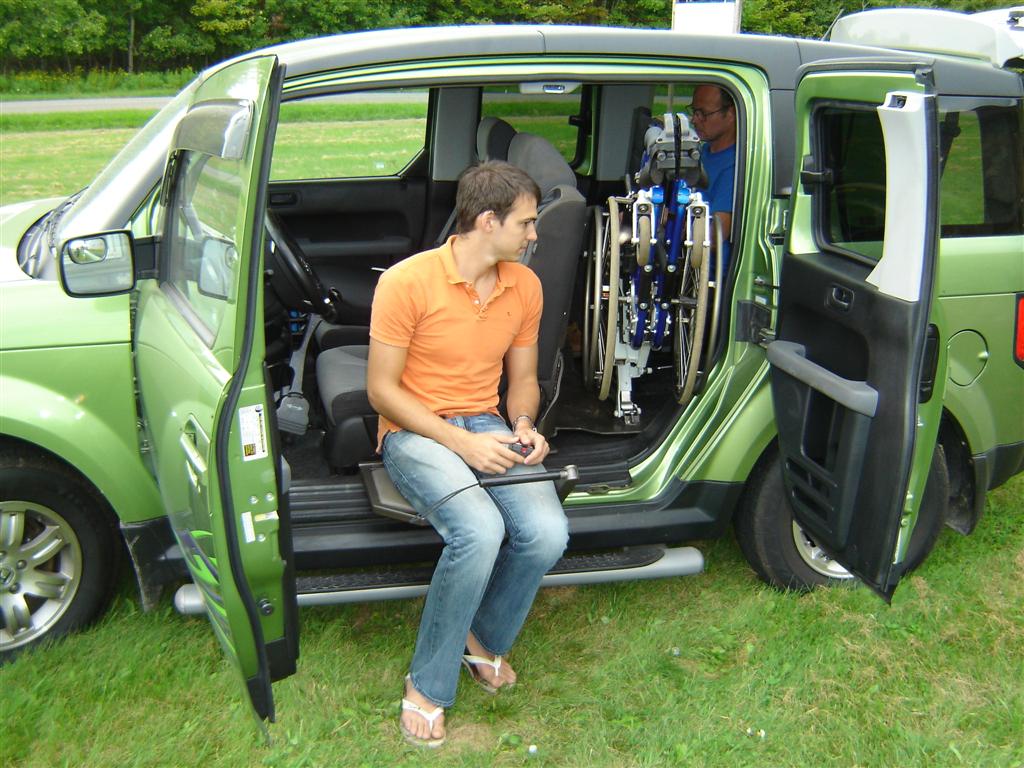

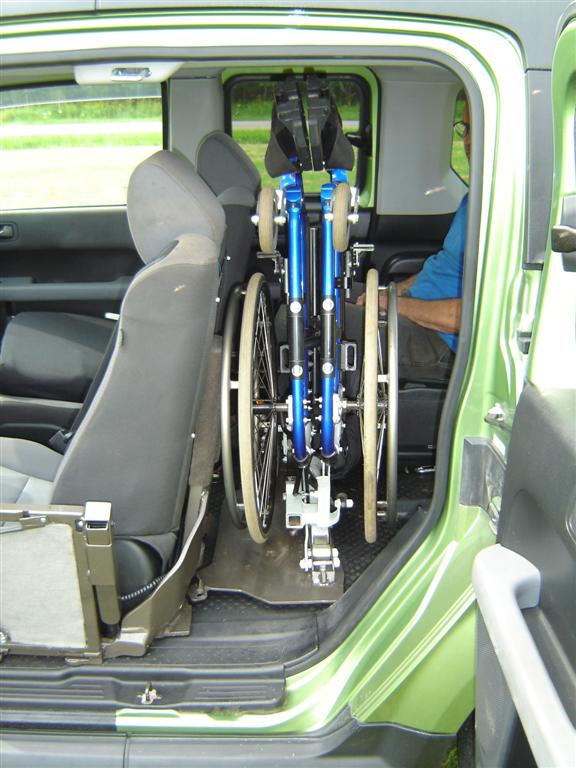

Due to the fact that the wheelchair is stowed in a 90° rotated position, it is possible with many vehicles to leave the passenger side captain's chair in place. With certain Stow 'n Go vehicles, it is even possible to maintain the Stow 'n Go functionality of the passenger side seat! In most vehicles, the lift is installed using existing factory mounts and bolts with no drilling or modification.

Easy bolt-on, vehicle specific brackets, requires no drilling or modification for most vehicles!
Passenger side captain’s chair remains fully usable for most applications
Compatible with Stow ‘n Go seating
Wheelchair is secured while vehicle in motion
Typical installation time is 2-3 hours (this can vary greatly from application to application)
Available for a wide variety of trucks, vans, and SUV’s

Easy-Stow Information Resources

Website Information: http://www.accessunlimited.com/easy-stow/web page

Video:

YouTube Video (shows short basic video of Generation II unit movement) http://www.youtube.com/watch?v=GuOmY4zlc7I

YouTube Video (more detailed, shows total access solution with Generation II Easy-Stow and Glide 'n Go System) http://www.youtube.com/watch?v=UAY7404GqlE

Video download: http://170.215.180.182/download/Easy-Stow/video/
(files to download are MOV0BA.mpg and MOV0BB.mpg)

Slide Show (shows Easy-Stow Gen II and also new Glide 'n Go Gen II)
http://www.accessunlimited.com/easy-stow/html/slideshow/ulthm.htm

Instructions: Click normally on all web links to view. For all of the video links above except for the YouTube video, you will want to download the file by RIGHT-clicking it and selecting "save target as", then saving the file to your desktop. Then you will need to go to the desktop of your computer and left double click on the file to view it. If you try to just do the normal left-click, the videos will not display properly or at all. To view all YouTube videos, just click normally. Although the YouTube videos are lower resolution than the downloadable ones, they are easier and quicker to view. The advantage of the downloadable ones is that you get to keep a copy!
